Pitting resistance is a critical factor in selecting materials for piping systems, particularly in industries where corrosion can pose significant challenges. One of the essential metrics used to evaluate this resistance is the Pitting Resistance Equivalent Number (PREN). This article delves into the complexities of pitting corrosion, how PREN number are determined, and what they signify about material choices. By the end, readers will have a more profound understanding of PRENs and their relevance in various applications.
PREN Calculator
What is Pitting Corrosion?
Pitting corrosion represents one of the most insidious forms of degradation that metals, especially stainless steel, can experience. It occurs when localized attacks form small pits or holes in the metal surface. These attacks can propagate rapidly, leading to severe structural issues if left unchecked.
Definition of Pitting Corrosion
Pitting corrosion is characterized by its localized nature, meaning it does not uniformly affect the entire surface of the material. Instead, it focuses on specific areas, creating tiny holes that can penetrate deep into the material. This phenomenon is often triggered by the breakdown of the protective oxide layer that typically guards stainless steel against corrosion.
The main contributing factors to pitting corrosion include environmental agents such as bromides, chlorides, fluorides, hypochlorites, iodides, sulfides, and even water. Each of these elements can disrupt the protective film, making the underlying metal susceptible to rapid deterioration.
Mechanisms Behind Pitting Corrosion
Understanding the mechanisms of pitting corrosion requires a closer look at the electrochemical reactions occurring at the metal’s surface. When exposed to corrosive agents, stainless steel can develop micro-environments where the local concentration of ions becomes significantly different from the bulk environment. This leads to differential aeration cells, where oxygen levels fluctuate, causing localized anodes and cathodes to form.
As a protective layer breaks down, the exposure of the underlying metal to aggressive ions increases, leading to further pit formation. The small size of the pits may make them difficult to detect early, but their potential for catastrophic failure means they must be taken seriously.
Common Environments That Lead to Pitting Corrosion
Pitting corrosion is often observed in marine environments due to the high concentration of chlorides in seawater. Similarly, in industrial settings where processing chemicals are handled, the presence of halides can provoke pitting corrosion. Other scenarios include:
- Chemical Processing Plants: Reactive chemicals can form aggressive solutions that exacerbate the risk.
- Oil and Gas Industries: Exposure to hydrogen sulfide (H2S) can significantly increase the likelihood of pitting in pipeline systems.
- Water Treatment Facilities: Chlorinated water sources can lead to rapid deterioration of metals via pitting.
By identifying these environments, engineers can better prepare and select appropriate materials for long-term durability and reliability.

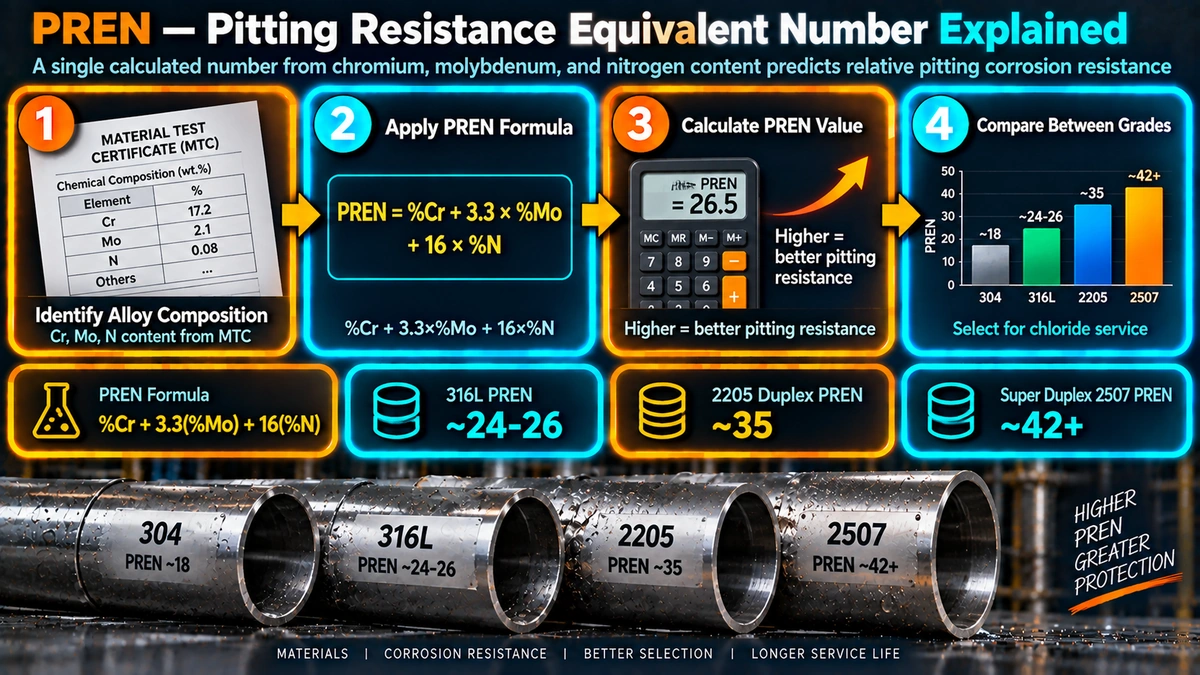

How is the PREN of an Alloy Determined?
The determination of Pitting Resistance Equivalent Number involves analyzing the metallurgical composition of alloys, particularly focusing on specific elements known to influence corrosion resistance. The primary components that play a role in determining PREN include chromium, molybdenum, nitrogen, and tungsten.
Key Elements Influencing PREN
The amount of chromium present in a steel alloy is a strong predictor of its resistance to corrosion. Chromium contributes to the formation of a passive oxide layer, which protects the underlying metal from aggressive agents. Molybdenum enhances this effect by increasing the alloy’s resistance to pitting, particularly in chloride-rich environments.
Nitrogen, while less commonly highlighted, also plays a pivotal role in improving overall mechanical strength and corrosion resistance. Tungsten can further enhance the performance of super duplex stainless steels, forming a part of the second calculation formula for PREN.

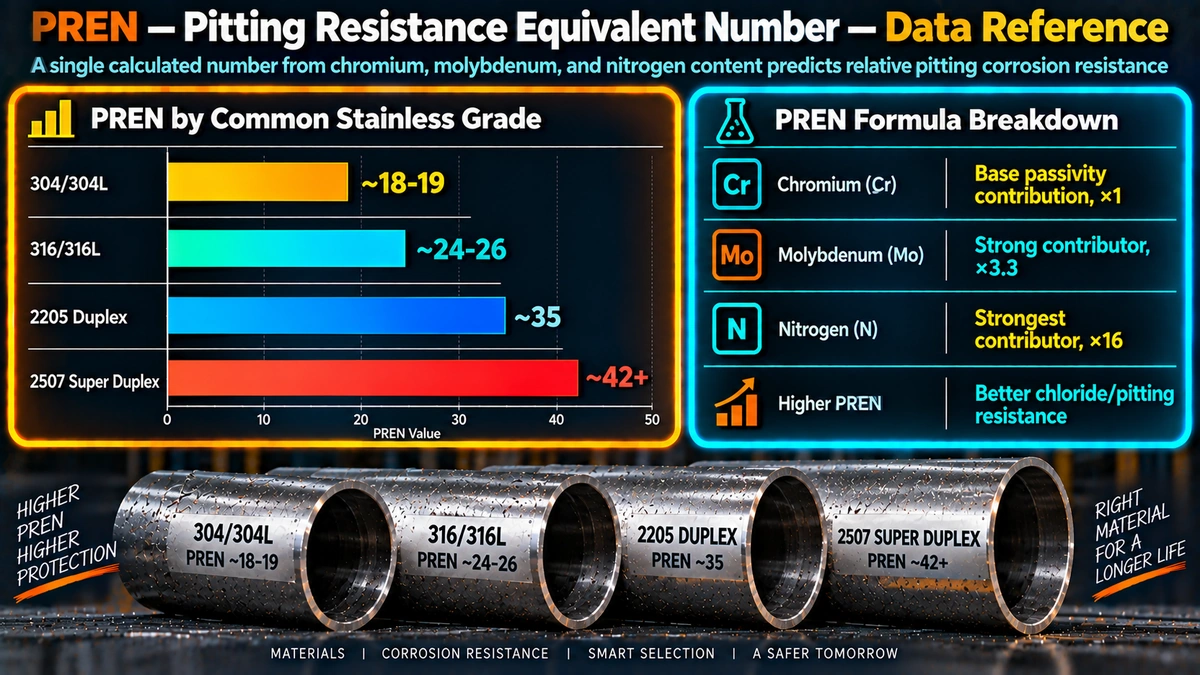

Formulas for Calculating PREN
While various formulas exist for calculating PREN, two of the most widely accepted models must be mentioned:
- Standard Formula: PREN = %Cr + (3.3 x %Mo) + (16 x %N)
This formula is primarily used for standard stainless and duplex alloys without tungsten.
- Tungsten-Adjusted Formula: PREN = %Cr + 3.3 x (%Mo + 0.5%W) + 16 x %N
This version accounts for the tungsten content prevalent in many super duplex stainless steels.
The results from these calculations typically range from around 16 to over 40, allowing for an effective comparison between various grades of stainless steel.
Industry Standards and Guidelines
It is crucial to note that while PREN numbers provide valuable insights into corrosion resistance, they should not be treated as definitive indicators of suitability for a specific application. Industry guidelines, such as those provided by the British Stainless Steel Association, recommend consulting with engineers to ensure that selected materials meet all necessary requirements for the intended environment.
Understanding the intrinsic properties of the alloys, their intended applications, and the unique challenges posed by each working environment is vital for effective selection.
What Can PREN Number Tell You About A Material Choice?
Pitting Resistance Equivalent Numbers serve as a comparative tool, allowing engineers and project managers to gauge the relative pitting resistance of various stainless steel alloys. However, interpreting these number requires nuance and a comprehensive understanding of the broader context in which they reside.
Limitations of PREN Number
While PREN number are useful for ranking and comparing different grades within the same family, they do come with limitations. A modest difference in PREN does not necessarily correlate to an equivalent difference in corrosion resistance. The varying attributes of alloys mean that two grades with similar PRENs might behave differently under specific conditions.
Furthermore, PRENs should not be used as standalone metrics. Factors such as temperature variations, acidic environments, and external coatings or treatments can significantly affect the actual performance of a material in service.
Practical Applications of PREN Number
In practical terms, industries such as oil and gas commonly require materials with a PREN greater than 32. For environments rich in hydrogen sulfide (H2S) or seawater, a PREN of 40 or higher is often recommended. These benchmarks highlight the importance of selecting alloys based on anticipated environmental conditions and the specific risks associated with them.
Moreover, PREN number can guide decisions on the thickness of materials, joint designs, and fabrication processes, all of which contribute to the overall integrity of piping systems.
Other Critical Considerations Beyond PREN
While PREN provides useful information regarding corrosion resistance, several other factors must be considered when choosing materials. These include:
- Availability: Some alloys may not be readily available or may require longer lead times, thus affecting project schedules.
- Cost: Cost considerations can significantly influence material selection, particularly for large-scale projects.
- Fabricability: The ease with which a material can be fabricated into the required shapes or forms is an essential consideration, particularly when specialized machining is required.
- Physical Traits: Attributes such as weight, strength, and thermal properties should also influence the choice of materials.
A comprehensive approach that considers PREN alongside these factors will yield the best results in material selection.
Summary
The Pitting Resistance Equivalent Number serves as a valuable metric in evaluating the susceptibility of various stainless steel alloys to pitting corrosion. While it provides important comparative insights, it should be viewed as one piece of a larger puzzle involving multiple considerations.
Effective decision-making in material selection entails an understanding of pitting corrosion, the factors contributing to PREN number, and the limitations of these numbers. Engineers and decision-makers are encouraged to integrate PREN data with additional criteria, including availability, cost, fabricability, and physical traits, to arrive at optimal material choices.
Ultimately, while PREN numbers help establish a baseline for evaluating corrosion resistance, engaging experts and conducting thorough assessments remain crucial in ensuring the best outcomes for piping systems and materials utilized in demanding environments.
Conclusion
In conclusion, the Pitting Resistance Equivalent Number serves as an essential tool for evaluating the pitting corrosion resistance of stainless steel alloys. Yet, its utility is maximized only when combined with a comprehensive understanding of the various factors influencing material performance. As industries continue to grapple with corrosion challenges, incorporating PREN into a broader decision-making framework will enable more effective and sustainable material choices. Engaging with engineering professionals and leveraging their expertise will ultimately drive successful project outcomes.
